Munchies Tray
Hey hey, it's the munchies
Origins
When I set out to do this, I hadn’t really thought of the complications that are involved in doing angled cuts like this. I mean, I knew there would be some, but I had to really dig deep and resurrect some old trigonometry skills. Nah, not really, I used an online calculator, but still it was a lot of weird angles. It’s a 15° angle to the sides, but when you are doing the cuts, it’s a double mitre angle cut at 13.1° tilt, and 34° mitre. Yikes.
Mitre Calculator: For those who are interested in a really good online mitre cut calculator, here is the one I used: Compound Angle Calculator
Under Construction

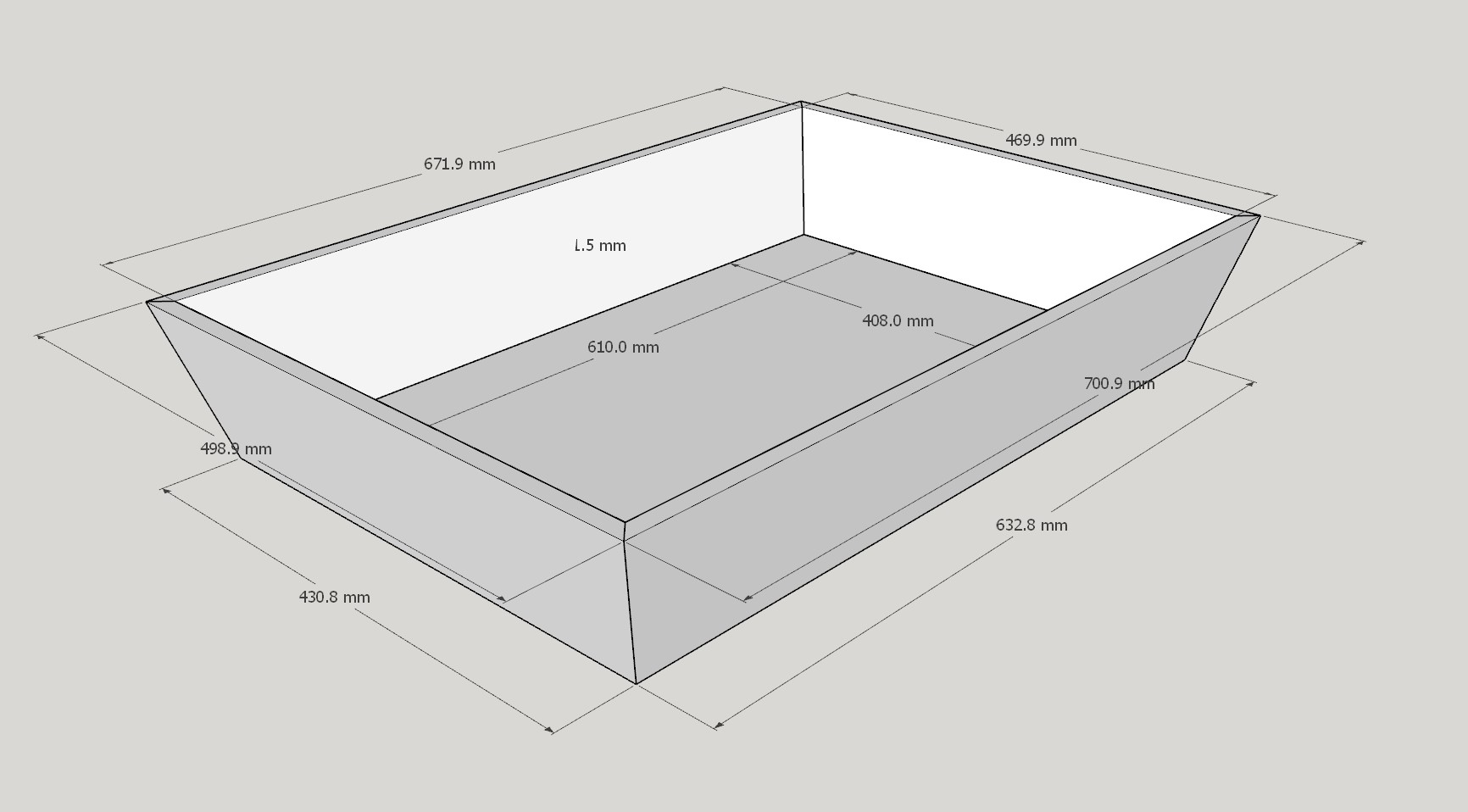

This is the Sketchup drawing used to plan the whole thing.
It ended up being bigger than this in the end, as I called an audible during the construction process. Doing such a reckless thing can often come back to haunt you, but in this case it worked out okay. The overall size was never an issue, it was all those angles that were the risky part.
As seems to be my usual for mitres these days, I used the Festool Domino to add strength to the mitre, and make it easy to glue-up. You have to use the really small 4mm dominos, but even then, you also have to be careful that you don’t blow thru the opposite side on your domino hole. Cause that looks downright messy and non-pretty.

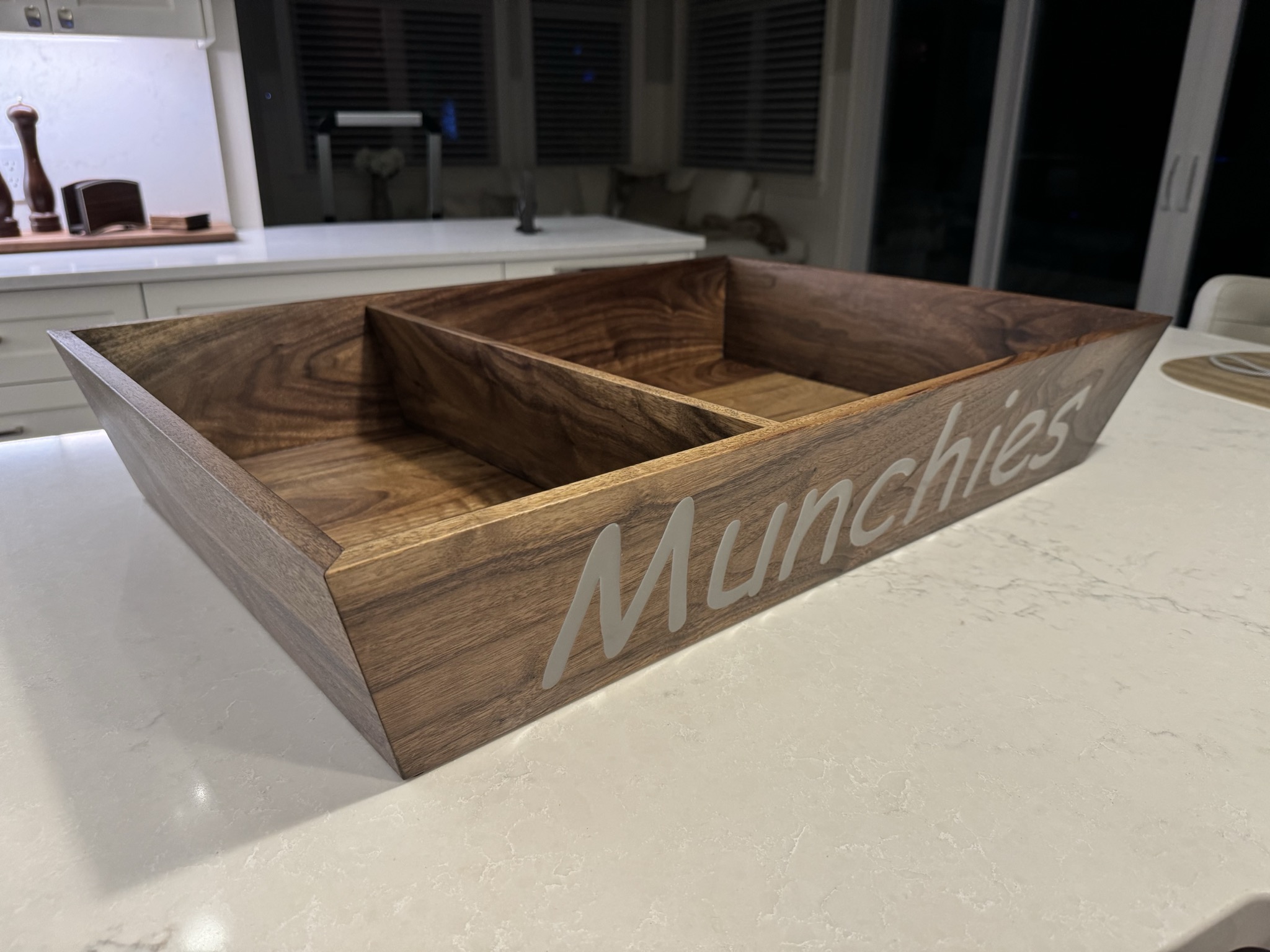

Crazy Angles
A fun build, while the angles were indeed odd, it was a lot of fun to see it come together.
In Production

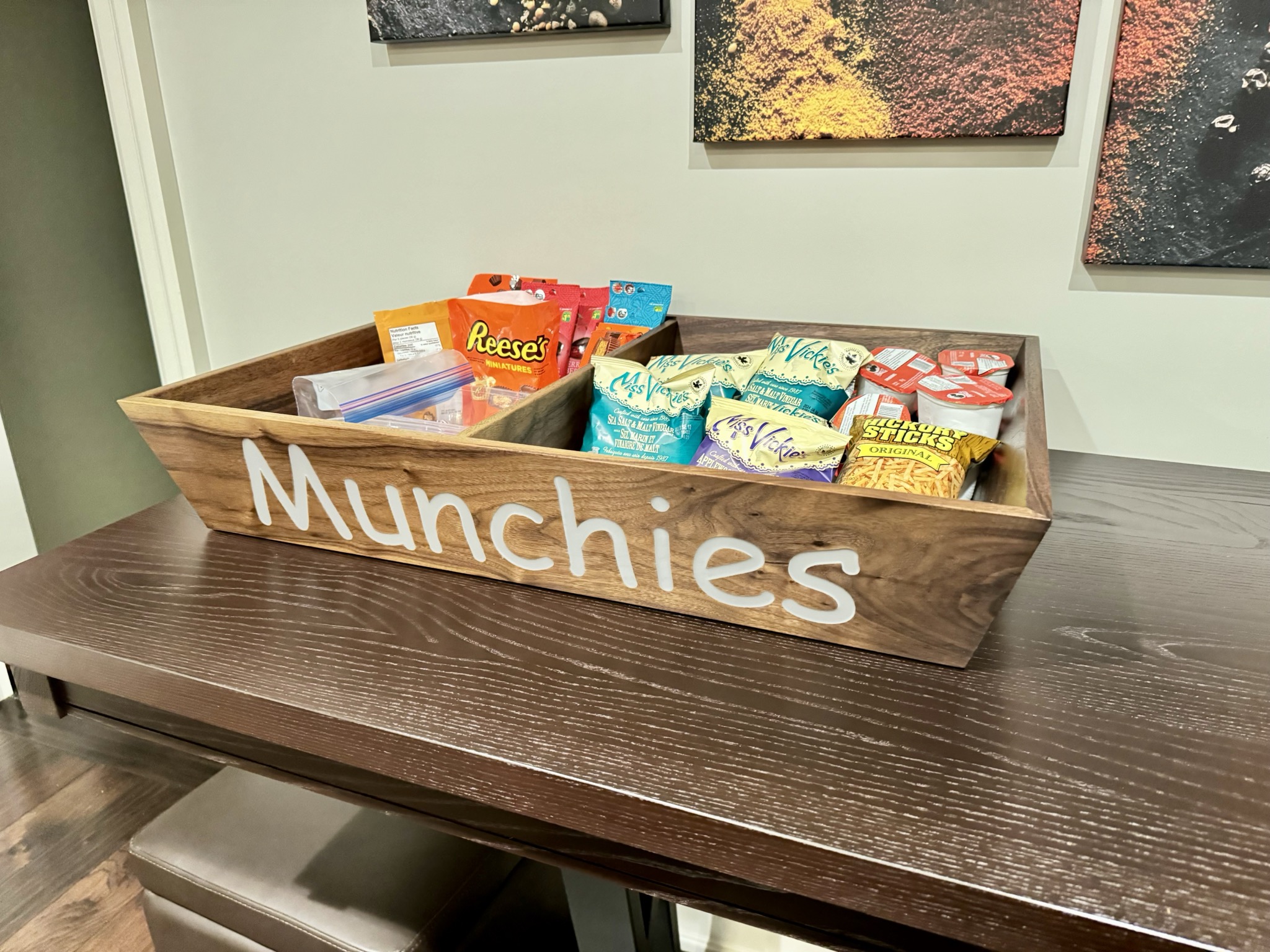

A tray full of munchies in its new home, which is normally resting upon the extension table from the previous post.
Materials
- Walnut from KJP Select Hardwoods
- Grey epoxy by Chill Epoxy
- Shaper Origin for the lettering
- Festool Domino for mitre joinery
